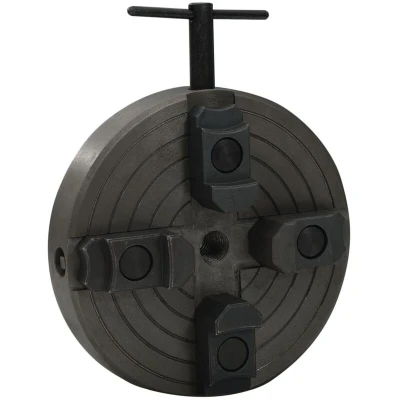

vidaXL 4 Jaw Wood Chuck with M18 Connection Steel Black 150x63 mm

ManoMano

General description This 4 Jaw Wood Chuck with M18 Connection is designed for versatility, allowing you to create original designs with high clamping accuracy on various surfaces, including solid or hollow circles, triangles, and hexagons. Made from durable steel, this chuck features a user-friendly 4 jaw design that fits a wide range of wood chucking lathes. Technical specifications Colour: Black Material: Steel Overall dimensions: 150 x 63 mm (Diameter x H) Not self-centering Number of jaws: 4 Thread: M 18 with pitch 3.5 Smallest diameter clamped: 15 x 15 mm Clamping range (internal jaw): 15 - 138 mm Clamping range (external jaw): 52 - 165 mm Thread depth: 39 mm Complete depth without jaws: 39 mm Complete depth with jaws: 63 mm Maximum speed: 3000 R/min Net weight: 2.48 kg Assembly required: Yes Other information Delivery contains: 1 x Chuck, 1 x Spanner

VidaXL

This wood chuck can perform a wide range of tasks, expanding the possibilities of making your original designs. It also provides high clamping accuracy on a wide range of surfaces, such as a fixed solid or hollow circle material, a triangular material, or a hexagonal material. This wood lathe chuck is made of steel, making it strong and durable. Featuring 4 jaw design, the chuck is easy to use and fits a wide range of wood chucking lathe.
